The print is there. The problem is everything else in the image.
Gun grips, steering wheels, patterned fabric. The surface a print comes from doesn’t disappear when the examiner photographs it. It competes. And for decades, the only tools available were general-purpose photo editors built for photographers, not forensic examiners.
Fast Fourier Transform (FFT) filtering changed that. It gave examiners a way to target and reduce visual interference without touching the underlying print. Today, it’s becoming a standard part of the modern latent print workflow.
What FFT filtering actually does
FFT stands for Fast Fourier Transform. The name sounds dense. The concept isn’t.
Think of it like an equalizer for a sound system. You don’t turn off the music. You isolate the specific frequencies causing distortion and reduce those.
Applied to a fingerprint image, FFT filtering works the same way. It breaks the image into its component frequencies, then identifies the repeating patterns caused by the background surface: fabric weave, window screen mesh, woven material. Those patterns register as distinct clusters in the frequency view.
The examiner selects those clusters and reduces them. What remains is a cleaner image, one where ridge detail is actually visible.
This is not the same as adjusting brightness and contrast. FFT operates at the frequency level. It isolates interference that global adjustments cannot touch.
The surface texture problem
Fabric weave, checkered gun grips, woven seat covers. The surface becomes part of the image.
When an examiner photographs a print lifted from a patterned surface, the texture competes directly with the ridge detail. Standard tools like brightness, contrast, and sharpening affect every pixel in the image. They can’t tell the difference between background interference and the print itself.
FFT filtering gets you closer. Fabric weave, window screen mesh, and checkered gun grips all produce strongly periodic patterns that repeat at a predictable frequency. Fingerprint ridges don’t. They curve, loop, and end. That semi-random structure means they occupy a different space in the frequency view than the background does. The examiner can target and remove the background spikes without touching the print. Standard tools can’t make that distinction. FFT gives examiners a lever that global adjustments simply don’t have.
How it works inside the workflow
The examiner opens the image inside VeriPic’s Digital Forensic Suite. The FFT filter is built directly into the enhancement workflow. No external software, no file exports. For a full picture of how modern latent print labs move from intake to court, see What a Modern Latent Print Workflow Actually Looks Like.

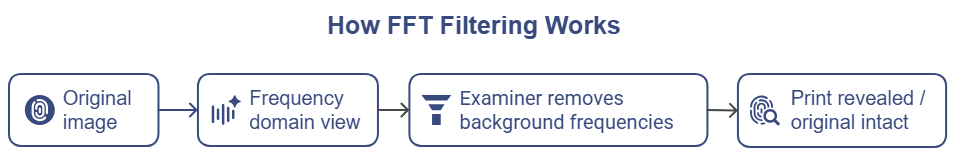

Here’s what the process looks like:
- Launch the FFT tool. It generates a frequency-domain view of the image. Background texture appears as bright, distinct clusters.
- Select the interference. The examiner identifies the frequency clusters that correspond to the background pattern.
- Preview and adjust. The tool shows the result before anything is saved. The examiner can refine the selection.
- Save. The enhanced image is saved as a new version. The original is never overwritten, and the system logs when the file was opened and when a new version was created.
Why it holds up in court
Defense attorneys challenge image enhancement. It happens regularly, and examiners need to be ready for it.
FFT filtering is a well-documented, scientifically grounded technique. It doesn’t create ridge detail. It removes interference that was hiding existing detail. That distinction matters, and examiners should be prepared to articulate it clearly.
Working inside a purpose-built platform strengthens that position. When the workflow is contained in one system, with the original file preserved, steps logged, and chain of custody intact, the examiner can walk through exactly what was done and why.
A system that tracks when a file was opened and saved, and by whom, gives prosecutors the documentation they need when evidence goes to court.
FFT vs. standard enhancement tools
FFT filtering isn’t a replacement for brightness, contrast, curves, or channel adjustments. It’s a complement to them. A real-world workflow might look like this: drop a red ink stamp with Channels, remove the fabric weave underneath with FFT, then use Curves to sharpen the ridge contrast. Each tool does something the others can’t.
| Tool | Best for | Common use case |
|---|---|---|
| Brightness & Contrast | Overall exposure issues | Underexposed or flat images |
| Curves | Precise tonal control | Lifting shadows without blowing highlights |
| Channels | Isolating color interference | Subtracting a red stamp from a black print |
| Black & White | Full grayscale conversion | Removing color as a visual distraction |
| FFT filtering | Repeating background patterns | Removing a window screen grid without blurring the print |
The real advantage is using all of these tools inside a single platform. No exporting, no switching applications, no broken chain of custody.
The bigger shift happening in forensic imaging
FFT filtering reflects something larger. The tools used in latent print examination are becoming more specialized, more forensic in their design.
General-purpose photo editors lack the audit trail functionality, the chain of custody controls, and the workflow structure that casework demands. As the field has matured, so have the expectations for the software supporting it. See how purpose-built forensic software compares to general-purpose tools.
Purpose-built latent print software brings tools like FFT filtering into the right context, where the original file is protected, the examiner’s decisions are documented, and the workflow holds up to scrutiny.
What this means for your lab
If your lab still relies on general-purpose software, FFT filtering is a practical reason to look at purpose-built alternatives.
Prints from textured surfaces are a regular part of casework. Having the right tool for that specific challenge, inside a platform built for forensic workflows, improves both the quality of your analysis and the defensibility of your documentation.
VeriPic’s Digital Forensic Suite™ includes FFT filtering alongside a full suite of image enhancement tools. It runs within the VeriPic Digital Evidence Manager®, keeping your evidence workflow connected from intake to analysis to court.
See FFT filtering applied to a real latent print image. Request a demo.
